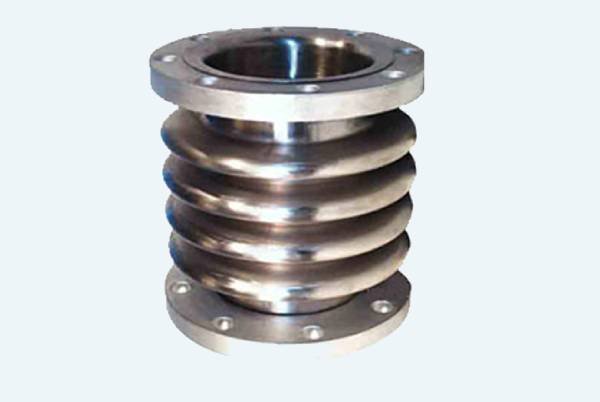

Metal bellows expansion joints are important component of piping and ducting systems metal bellows expansion joints. They are primarily installed for absorbing mechanical movements, vibration and thermal expansion. They are used in diverse applications to achieve the system’s efficacy and efficiency.
The key characteristics of metal bellows expansion joints
- High Temp Capability
Metal bellows expansion joints can function at high temperatures due to the type of material used, such as stainless steel, Inconel, or other nickel-based alloys. They can be utilised in applications where there are high temperatures, such as steam lines or high-temperature gases and thermal cycling, without any loss of structural integrity.
- Pressure Rated
The metal bellows are intended for use under pressure. Therefore, unlike the expansion joints, which are made of rubber or fabric, the metal bellows are precise in their composition and offer the advantage of being able to withstand both internal and external pressure without deforming or leaking.
- Flexibility & Ability to Absorb Movement
Metal bellows expansion joints have the capacity to compensate for a variety of movements, such as axial movements (compression/expansion), lateral movements (side to side), and angular movements (bending). This capacity for movement will help to prevent the build-up of stress in the piping system due to either thermal or mechanical expansion.
- Corrosion Resistance
Metal bellows can exhibit superior corrosion resistance depending on the type of metal being used. For example, stainless steel and certain specific alloys are selected regularly for use in areas that are experiencing a high degree of corrosion, such as chemical processing facilities and offshore facilities.
- Long-term stability
Metal bellows expansion joints are designed to withstand tough conditions for a long time. As long as they are designed and installed properly, they will not experience fatigue failure even after many cycles of expansion and contraction.
- Space-efficient design
While they are robust and functional, metal bellows expansion joints are also space-efficient. They can be placed in areas with restricted space without compromising their performance.
- Generating Energy
Steam systems, turbines, and exhaust systems in both thermal and nuclear energy plants use metal bellows expansion joints throughout their connections between pipes and equipment to enable the thermal expansion that occurs because of the extreme temperature of operating conditions and for normal operational efficiency of the critical equipment.
What are the common applications of metal bellows expansion joints?
Metal expansion joints are used in diverse industrial applications. Some of them are as follows
- Oil & Gas
Metal bellows expansion joints are commonly found in the oil and gas industry in pipeline applications for refineries, offshore platforms, and pipeline transportation of oil and gas. They accommodate the movement that occurs due to changes in temperature and changes in pressure while providing a secure and leak-tight connection.
- Chemical/Petrochemical Processing
In industrial chemical manufacturing, aggressive liquids and gases are processed, resulting in large amounts of corrosion through metal piping systems; therefore, metal bellows expansion joints help by providing corrosion-resistant products. They are used throughout processing reactors, heat exchangers, and piping systems in chemical manufacturing for the efficiency, safety, and reliability they will provide to the system
- HVAC and Industrial Ducting
The heating, ventilation, and air conditioning sector can also make use of metal bellows, especially in high-temperature and high-pressure ducting systems.
- Marine and Shipbuilding Industry
Marine structures and vessels are always in motion and thus need to be protected from the effects of vibration and movement. The metal bellows expansion joint plays a key role in the exhaust systems and utilities of vessels.
- Aerospace and Defense Industry
Metal bellows expansion joints have been utilised in the aerospace industry for the construction of fuel systems and exhaust systems.
Power your operations with precision-engineered metal bellows expansion joints from AFS Joints
As a leading Bellow expansion joint manufacturer, we deliver reliable elastomeric expansion joints and tailored custom expansion joint solutions for demanding applications. Minimise downtime, maximise efficiency, and ensure long-term reliability—get in touch with the AFS Joints team today to get the perfect solution for your system.
