I still remember the first R Panel roof I helped install.
It was a dusty agricultural barn, mid-summer, heat reflecting off galvanized steel.
By the end of that job, I understood why R Panel dominates the metal roofing world.
This guide isn’t theory.
It’s built from field installs, supplier quotes, callbacks, and years of watching panels age.
What Is R Panel Metal Roofing?

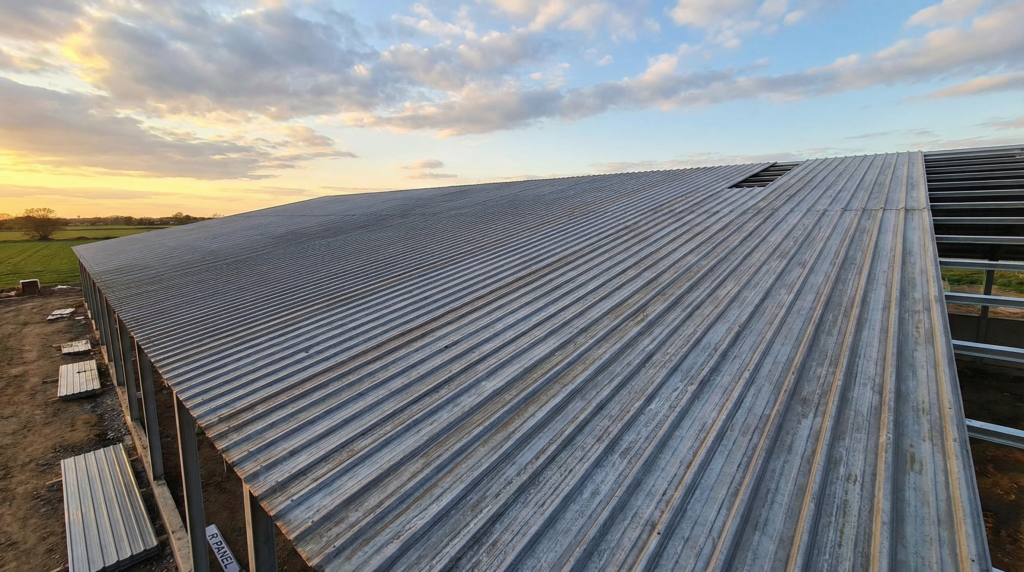

R Panel is an exposed-fastener metal panel system commonly used on roofs and walls.
It features raised ribs, wide coverage, and simple installation.
Most panels measure 36 inches wide with ribs spaced 12 inches apart.
That rib profile is what gives R Panel its strength.
It’s simple, rugged, and brutally effective.
R Panel vs PBR Panel: What’s the Difference?
This question comes up constantly.
A PBR panel is essentially an upgraded R Panel.
The extra “P” stands for purlin-bearing leg.
That small flange allows PBR panels to span supports more effectively.
On roofs with wider purlin spacing, PBR wins.
I’ve installed both.
If I’m roofing over open framing, I spec PBR every time.
Common Uses for R Panel Systems
R Panel isn’t decorative.
It’s functional, tough, and unapologetically industrial.
You’ll see it on:
- Metal buildings
- Warehouses
- Agricultural barns
- Workshops and garages
- Commercial wall cladding
I’ve even used it on modern residential accents when clients wanted an industrial look.
R Panel Roofing Cost Breakdown
Pricing is one reason R Panel remains popular.
Material-only pricing typically ranges between $1.75 and $3.50 per square foot.
Installed costs usually land between $4.50 and $8.00 per square foot.
On a 1,500 sq ft shop roof last year, total cost came in just under $9,000.
That included underlayment, trim, fasteners, and labor.
What Affects R Panel Pricing?
Several variables move the needle quickly.
Steel gauge matters.
24-gauge panels cost more but resist denting far better.
Finish type matters too.
Galvalume is cheaper.
Painted panels last longer and look cleaner.
Freight costs have surprised more than one client lately.
Long panels aren’t cheap to ship.
Gauge Thickness and Why It Matters
Most R Panel roofing comes in 26-gauge or 24-gauge steel.
26-gauge works fine for walls and low-traffic roofs.
24-gauge feels noticeably stiffer underfoot.
I once replaced a 26-gauge roof after hail shredded it.
The adjacent 24-gauge building survived untouched.
Installation Process: What Actually Happens
Installing R Panel isn’t complicated, but it’s unforgiving.
Panels are laid square from the eave upward.
Fasteners go through the flats, not the ribs.
Miss that detail and leaks follow.
I’ve fixed enough of those to be confident.
Proper lap alignment matters more than speed.
Fasteners, Washers, and Leak Prevention
Exposed fasteners scare homeowners.
They shouldn’t—if installed correctly.
Quality screws with EPDM washers last decades.
Cheap fasteners fail fast.
I always torque by feel, not gun speed.
Over-driven screws crush washers and invite leaks.
Underlayment and Condensation Control
Never skip underlayment.
Synthetic underlayment adds minimal cost and huge protection.
In humid climates, condensation is real.
On one shop project, skipping underlayment caused dripping ceilings every winter morning.
We fixed it the hard way.
R Panel Roof Pitch Requirements
Minimum recommended slope is 3:12.
Yes, I’ve seen it installed flatter.
No, I don’t recommend it.
Water moves slowly on low slopes.
Exposed fasteners demand gravity’s help.
R Panel Longevity and Maintenance
A properly installed R Panel roof lasts 30–40 years.
Maintenance is simple:
- Annual fastener check
- Occasional washer replacement
- Keep debris out of valleys
I still inspect a warehouse roof I installed in 2006.
It hasn’t leaked once.
R Panel for Walls and Siding
R Panel excels vertically.
Wall applications shed water effortlessly.
Fastener stress drops dramatically.
For wall systems, R Panel often outperforms standing seam in cost and durability.
Pros and Cons of R Panel Roofing
Pros:
- Affordable
- Durable
- Easy to repair
- Widely available
Cons:
- Exposed fasteners
- Industrial appearance
- Not ideal for very low slopes
Every system has trade-offs.
R Panel just makes them obvious.
Is R Panel Right for Your Project?
If budget matters and durability matters more than looks, R Panel wins.
For barns, shops, and metal buildings, it’s hard to beat.
If aesthetics come first, consider standing seam instead.
Different tool for a different job.
